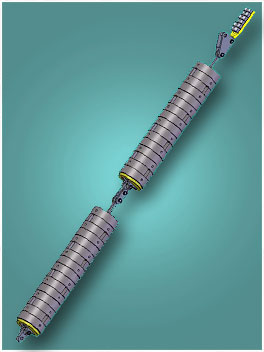

Modular design of weight rope suspension gear

Weight Rope Suspension Gear is used to anchor and tension rope guide systems.

Split-base, spherically seated rope glands are suitable for both guide and rubbing ropes, and enable the rope and weight stack to be turned at intervals to even out wear on the ropes. Capping is performed in the usual manner with white-metal or resin.

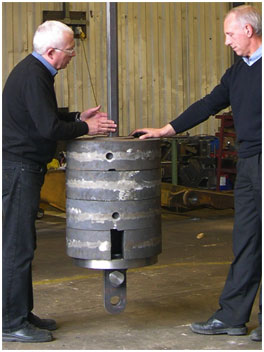

The Ormerod modular design of weight rod can be built up to any desired length and load; weights are of cast iron and custom designed & manufactured to any shape and weight

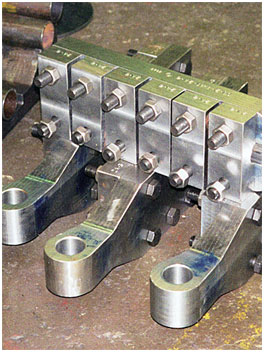

The Hambone rope clamp is a simple and efficient device for attaching the weight, or rubbing ropes to the weight rods.
